![[Graphic: Figure from the text]](figs/colormo.gif)
The abstract ColorModel class defines the way a Java program represents colors. It provides methods for extracting different color components from a pixel.
public class java.awt.image.ColorModel
extends java.lang.Object {
// Variables
protected int pixel_bits;
// Constructors
public ColorModel (int bits);
// Class Methods
public static ColorModel getRGBdefault();
// Instance Methods
public void finalize();
public abstract int getAlpha (int pixel);
public abstract int getBlue (int pixel);
public abstract int getGreen (int pixel);
public int getPixelSize();
public abstract int getRed (int pixel);
public int getRGB (int pixel);
}
The pixel_bits variable saves the ColorModel's bits setting (the total number of bits per pixel).
The number of bits required per pixel using this model.
Constructs a ColorModel object.
The default ColorModel format, which uses 8 bits for each of a pixel's color components: alpha (transparency), red, green, and blue.
Object.finalize()
Cleans up when this object is garbage collected.
A pixel encoded with this ColorModel.
The current alpha setting of the pixel.
A pixel encoded with this ColorModel.
The current blue setting of the pixel.
A pixel encoded with this ColorModel.
The current green setting of the pixel.
The current pixel size for the color model.
A pixel encoded with this ColorModel.
The current red setting of the pixel.
A pixel encoded with this ColorModel.
The current combined red, green, and blue settings of the pixel.
Gets the color of pixel in the default RGB color model.

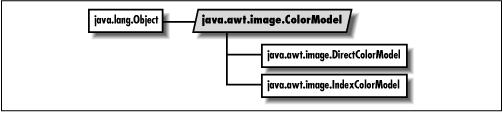

DirectColorModel, IndexColorModel, Object
|
 |
|
